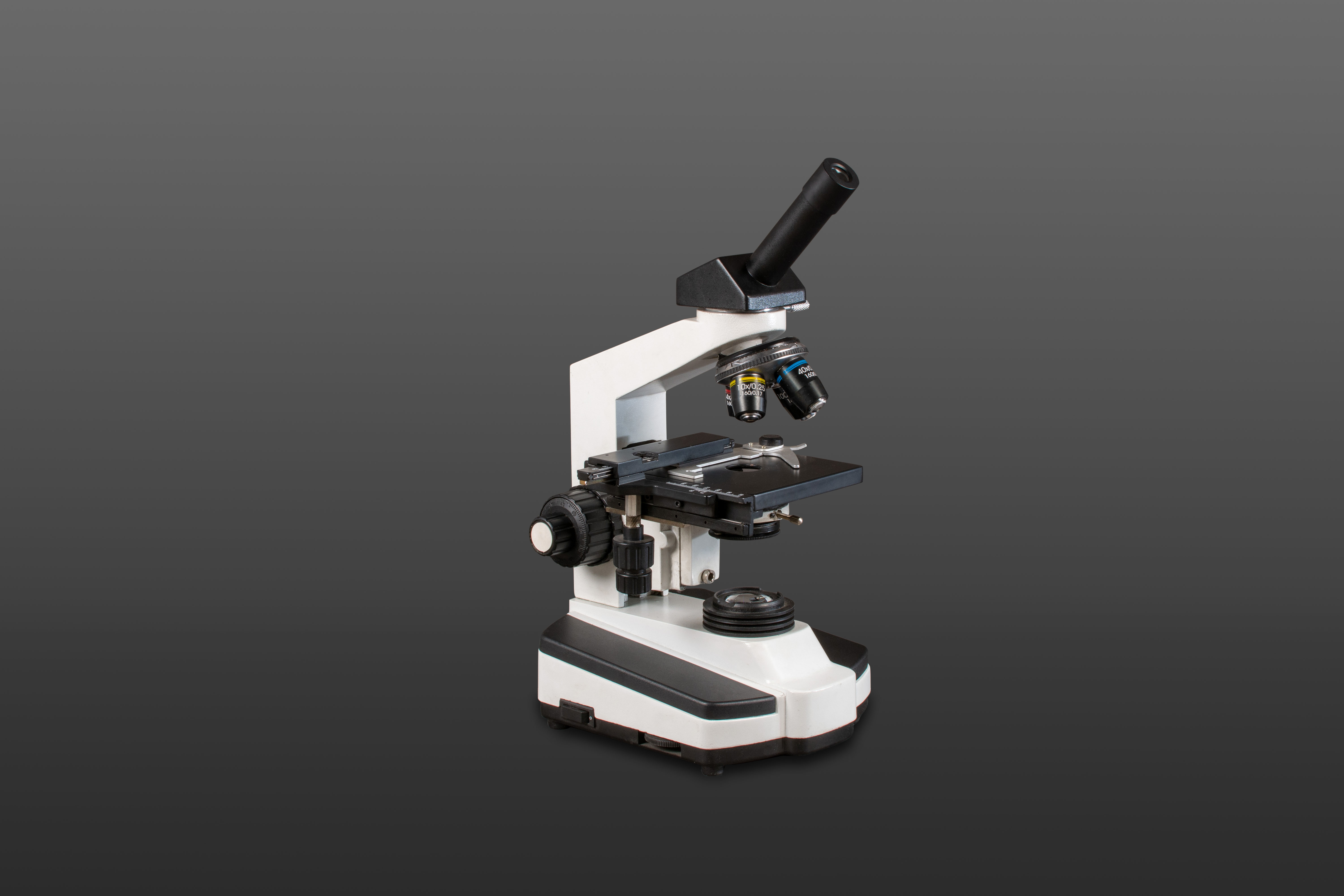

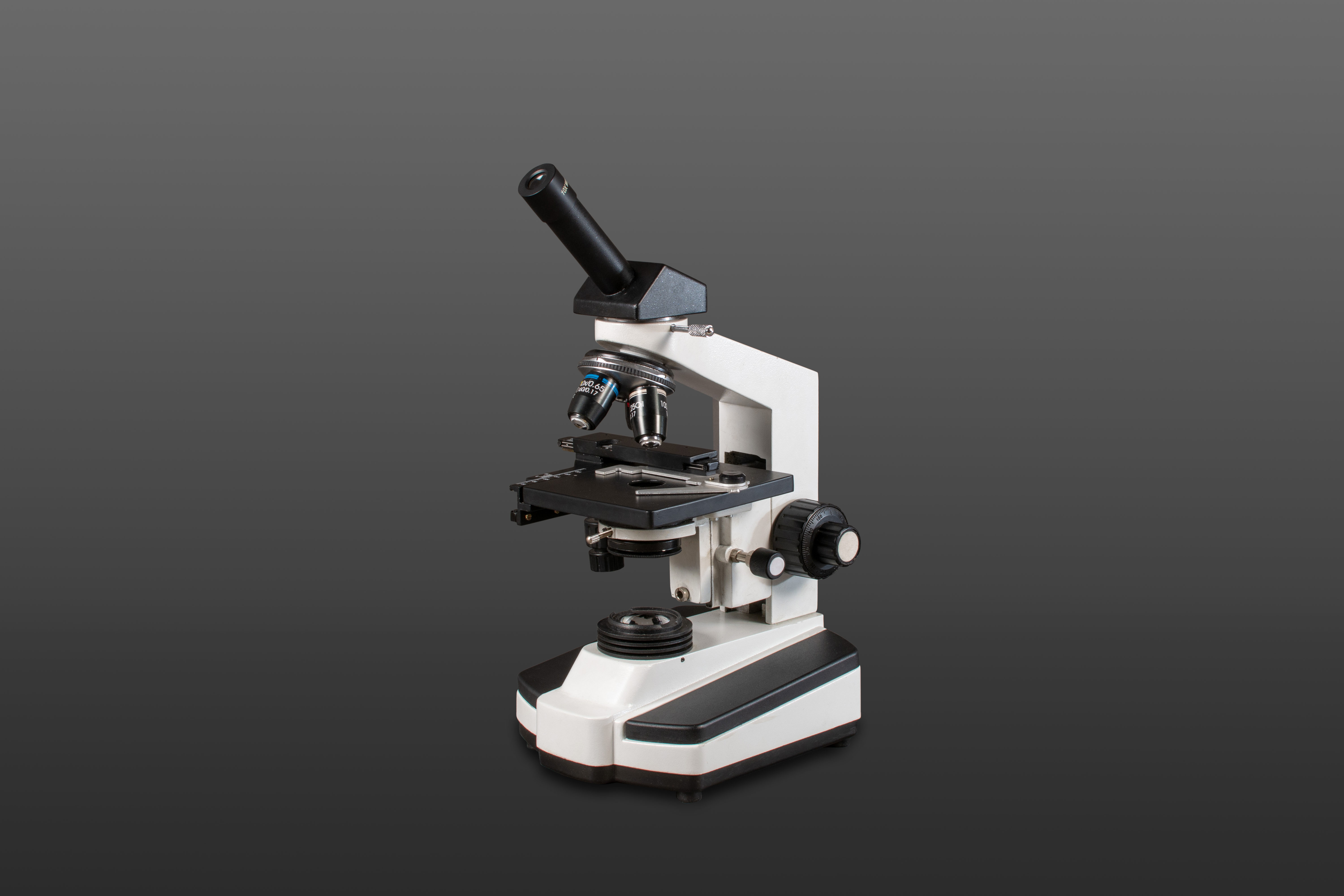

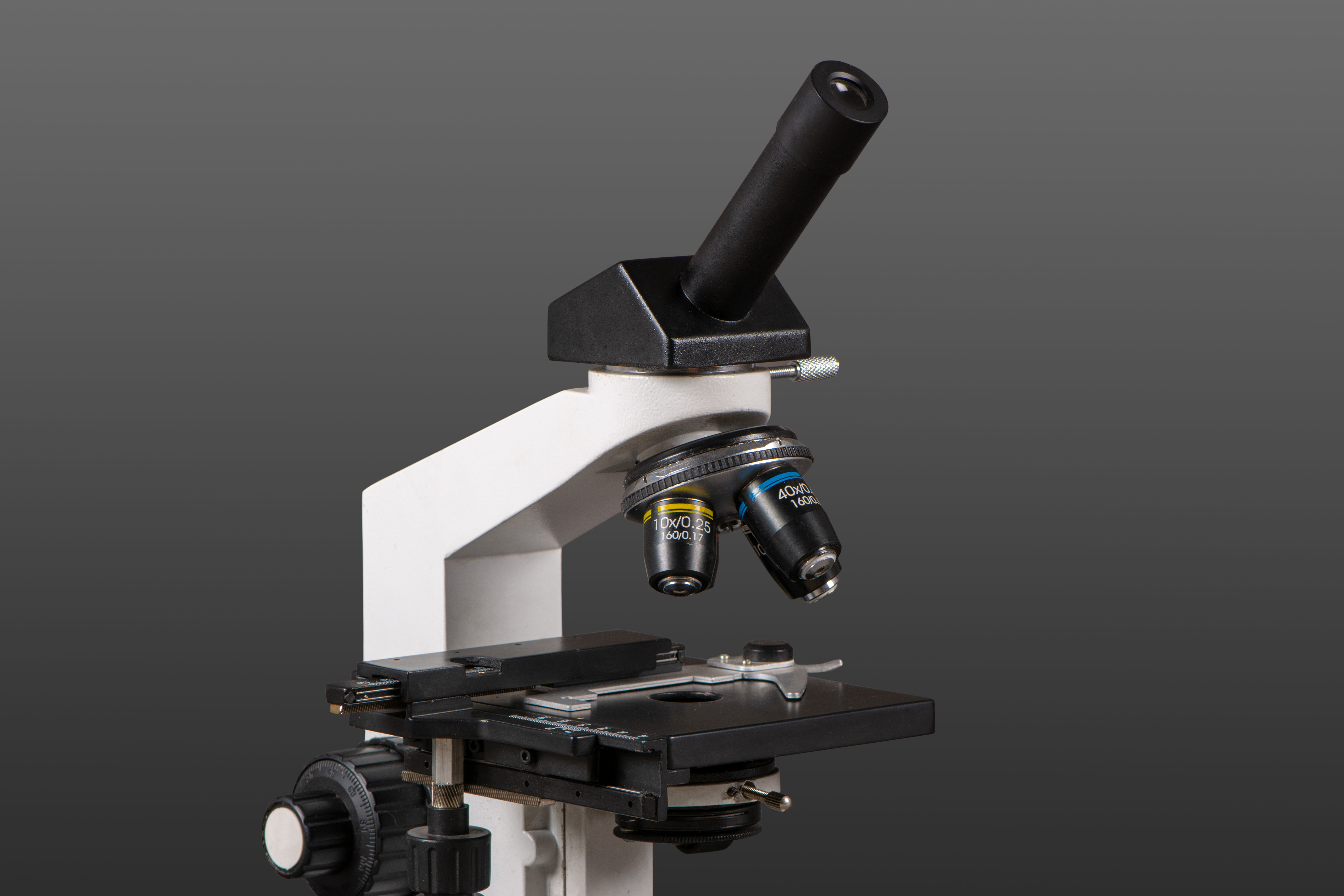

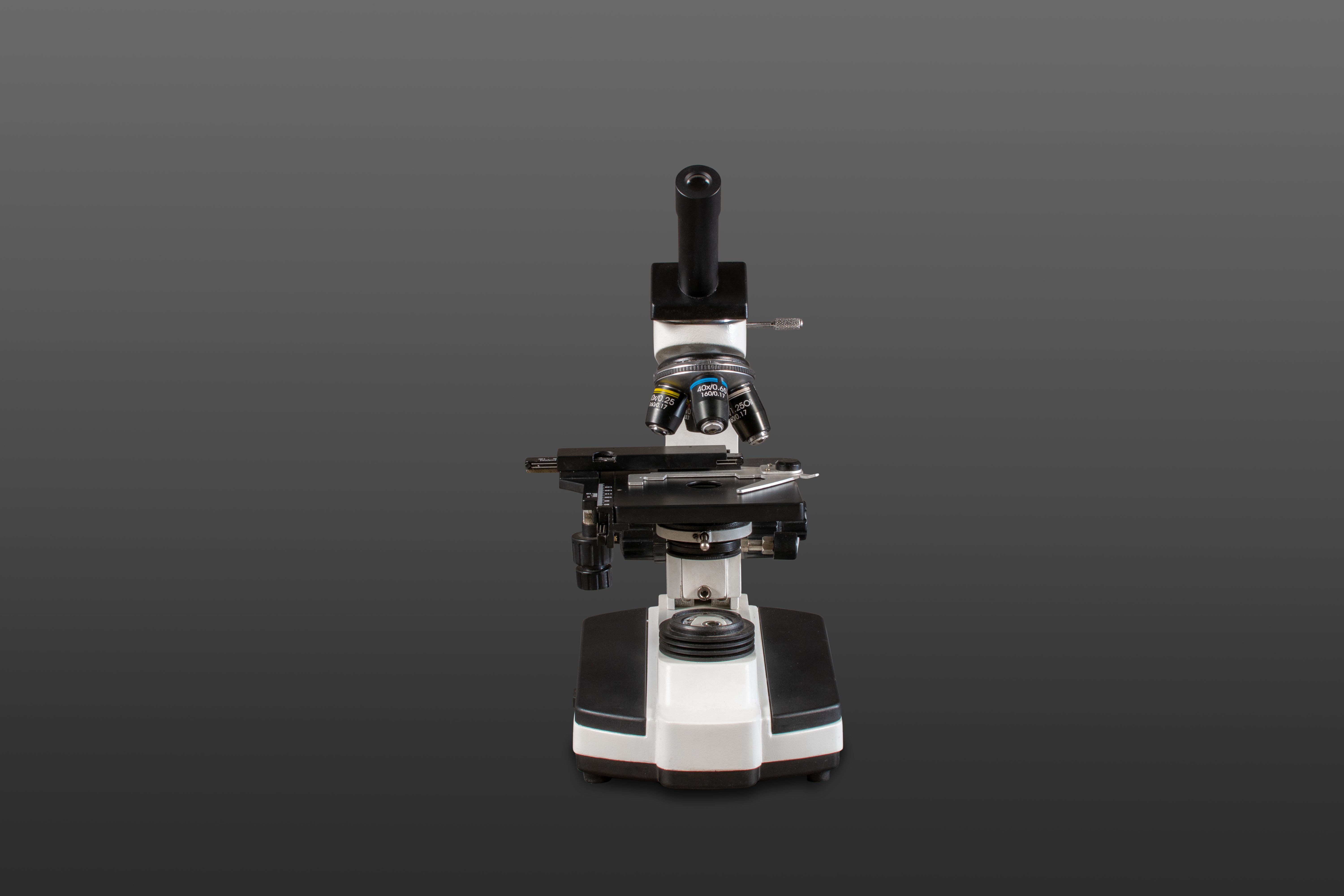

Monocular Research Microscope

Ask Latest Price

Standard Accessories

  • Operation manual dust cover, Guarantee card and Styofoam packing

Monocular Observation Head

  • Monocular tube inclined at 45˚ rotatable at 360˚

Eyepeice (Anti fungus coated)

  • Wide field 10X (paired) F.O.V 18mm

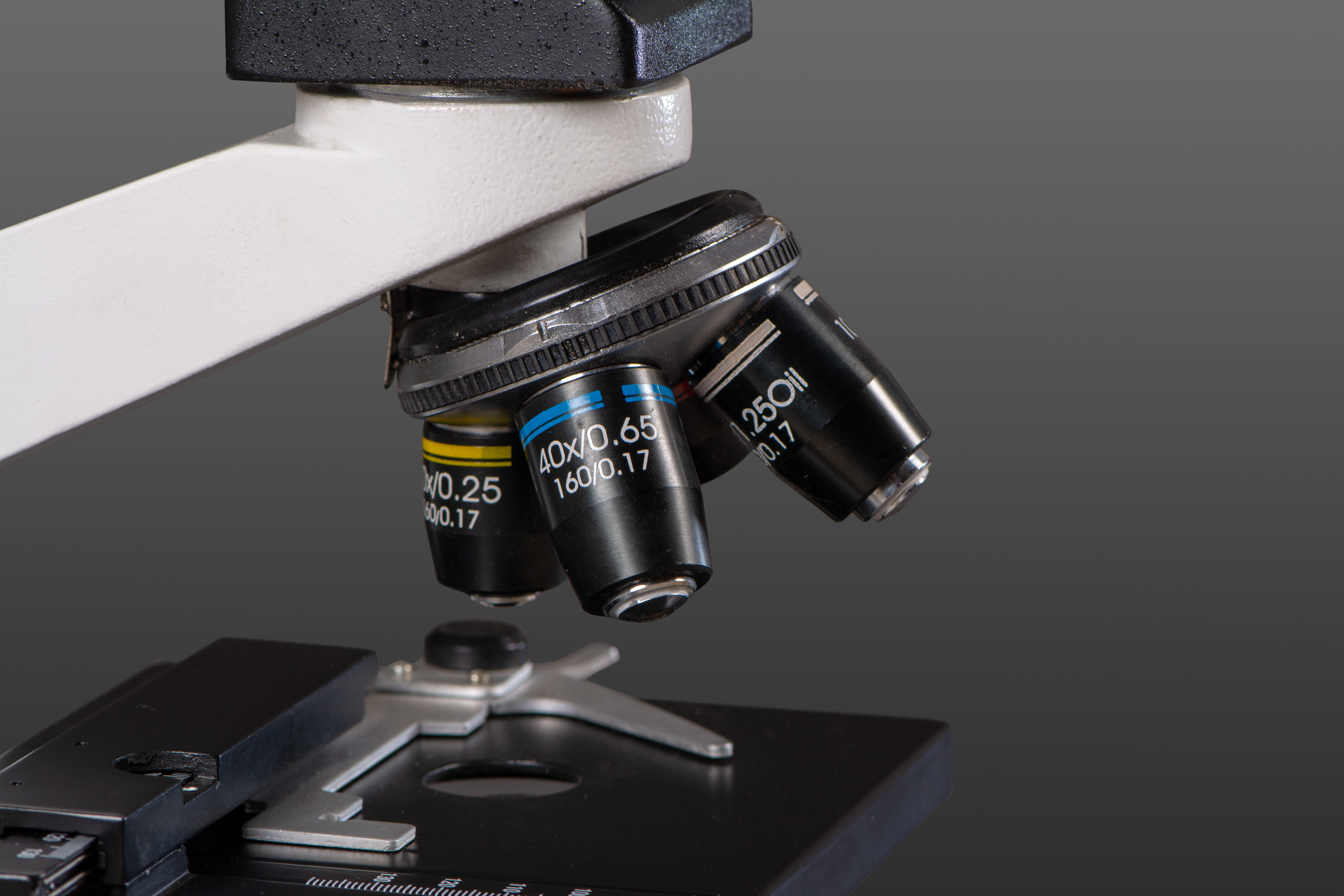

Objectives (Anti Fungas Coated)

  • Cognep semi plan Achromatic JIS 4X
  • Cognep Semi Plan Achromatic JIS 10X
  • Cognep Semi Plan Achromatic JIS 40X (S.L)
  • Cognep Semi Plan Achromatic JIS 100X oil (S.L)

Mechanical Body

  • Separate coarse and fine movement mechanical rectangular stage size 100mm X 140mm with cross travel 90mm(X) X 65mm(Y) ball bearing with co-axial controls

Sub Stage Condenser

  • Movable ABBE condenser
  • Centerable
  • NA 1.25 with aspheric lens
  • Iris diaphragm
  • Saring in and saring-out filter

Illumination System

  • Illumination system is 3W, 3V LED bulb or 6V, 20W halogen bulb with adjustable brightness
